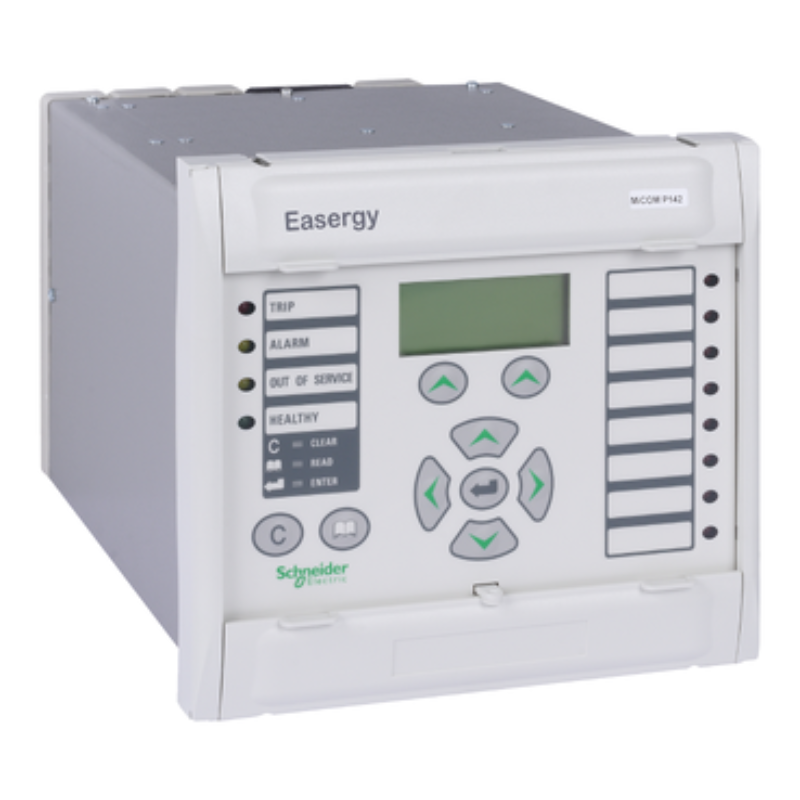

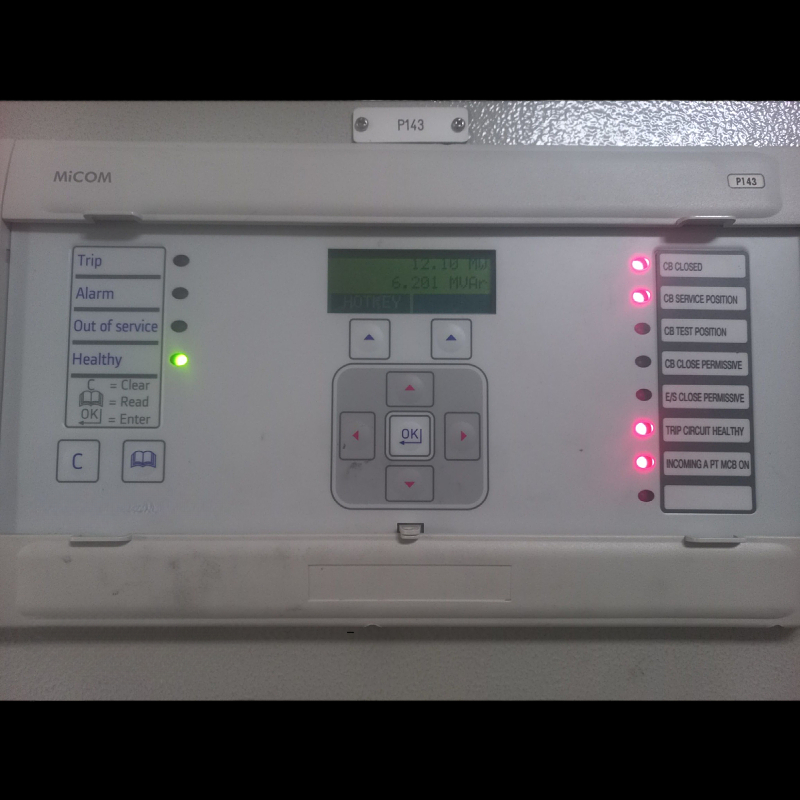

Schneider protection relay Micom series code meaning


Error Code and Action to be Taken :

0X83810002

Check Software is loaded correctly into the relay. Upgrade the Firmware.

0X83818001

Replaced Analog Opto Card, Ethernet Card, Relay Upgraded,& found Healthy & OK

0x0c0e0000

The relay card is defective. Replace the Relay card.

0x0c250018

Either the Processor Card or Analog Input Card is defective. Replace the Processor card or Analog Input Card. If the problem persists replace both cards.

0x0c0ddb1c

The Analog Input card is defective. Replace the Analog Input card.

0x0c170017

The processor Card is defective. Replace the Processor card.

0x0c0ddb15

The Analog Input card is defective. Replace the Analog Input card.

0x8c810000

 The Analog Input card is defective. Replace the Analog Input card.

0x0c170018

The processor Card is defective. Replace the Processor card.

0x83810007

 The processor Card is defective. Replace the Processor card.

0x81170000

The co-Processor Card is defective. Replace the Co-Processor card.

0x0c160011

The processor Card is defective. Replace the Processor card.

0x0cc020041

Model Number mismatch. Check the Model Number & reload the Model Number and Serial Number once again to the relay.

0x838b0808

Opto card No.3 is defective. Replace Opto card No.3

OX838b2008

Opto card No.2 is defective. Replace Opto card No.2

OX83818001

Replaced CT/VT Module& Opto card 2 & 3 Relay Tested, Measured & found Healthy & OK.

0x838188001

Replaced CT/VT Module, Relay Tested, Measured & found Healthy & OK.

0x02070be0

The processor Card is defective. Replace the Processor card.

0x0202000e

Replaced CPU card, Analog input card, Opto card, hood, and backplate

0x0c0ddb1c

Replaced CPU card. Relay tested in Automatic Test bench. Found OK. Relay energized for 48 hours. Since the CPU card is defectively unable to extract & download the customer’s settings & PSL.

0x812A0003

The Analog Input card is defective. Replace the Analog Input card.

0x0c220028

The processor Card is defective. Replace the Processor card.

0x0c0ddb1c

The Analog Input card is defective. Replace the Analog Input card.

0x0c1600b3

Relay card No.3 is defective. Replace Relay card No.3

0x351afe03

Ethernet Card is defective. Replace Ethernet Card.

0x0c1600b1

Relay card No.1 is defective. Replace Relay card No.1

0x0c1600b2

Relay card No.2 is defective. Replace Relay card No.2

0x0c0ed920

Either the Processor Card or Analog Input Card is defective. Replace the Processor card or Analog Input Card. If the problem persists replace both cards.

0x08118000b

Opto Card is defective. Replace Opto card.

0x020b0b4a

The processor Card is defective. Replace the Processor card.

0X0C140002

The processor Card is defective. Replace the Processor card.

0x8c01000.

The power Supply Card is defective. Replace the Power Supply card.

0x0c020020

The processor Card is defective. Replace the Processor card.

0x81180002

The processor Card is defective. Replace the Processor card.

0x07020020

Communication card is defective. Replace Communication card.

0x0c020028

Either Processor Card or Analog Input Card is defective. Replace Processor card or Analog Input Card. If the problem persists replace both cards.

0X811E0000

Either Processor Card or Co-processor Card is defective. Replace Processor card or Co-processor Card. If the problem persists replace both cards.

0x82021C98

 Co-Processor Card is defective. Replace Co-Processor card.

0x8c8100000

Anolg Input card is defective. Replace Anolg Input card.

0X8118002

Anolg Input card is defective. Replace Anolg Input card.

0x0c0ddb15

Opto Card is defective. Replace Opto card.

0x8c18000

Replaced Transformer , relay tested and calibrated and found in order.

0x0c1600d00

Either Processor Card or Analog Input Card is defective. Replace Processor card or Analog Input Card. If the problem persists replace both cards.

0x1c1200f6

Processor Card is defective. Replace Processor card.

0x83818000

Replaced CT/VT module from the P743 relay Excess stock to the defective relay. Relay tested from CP dept. Found OK.

Error code 0x0C220028 indicates that the IED configuration – based on the MCL file downloaded to the relay – cannot be initialised in flash memory. This can occur if the MCL file being downloaded to the relay is too large (>32kB) or the MCL file is corrupted during download.
